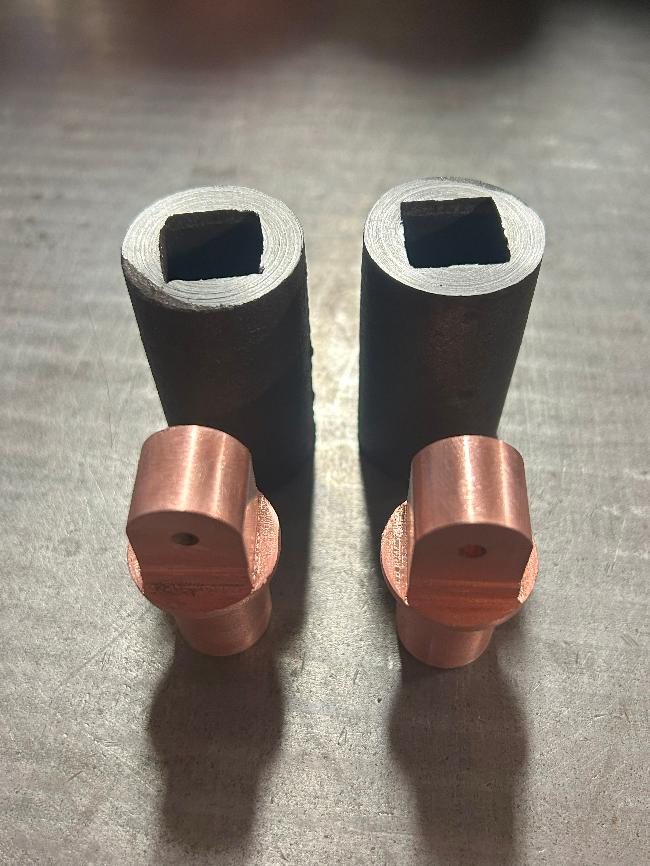

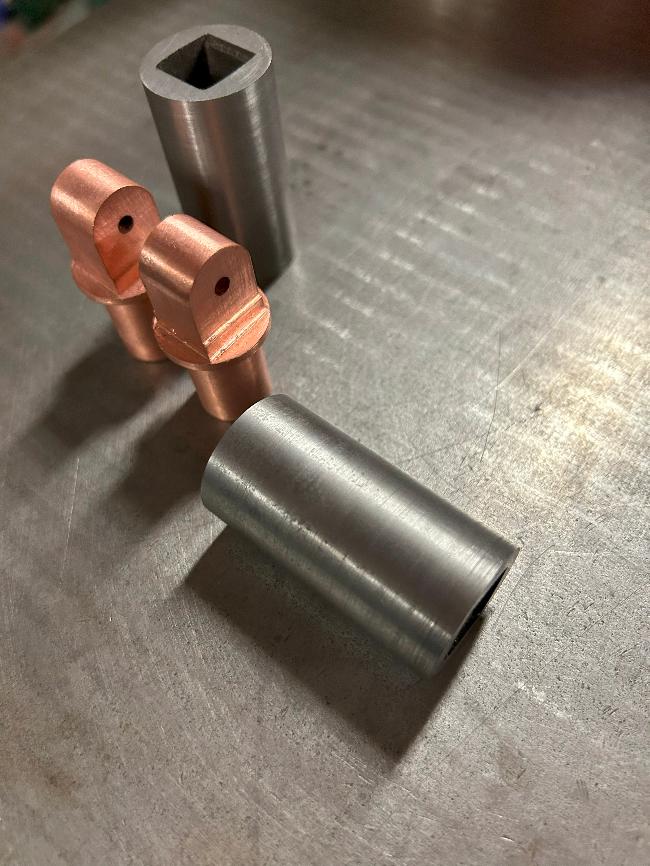

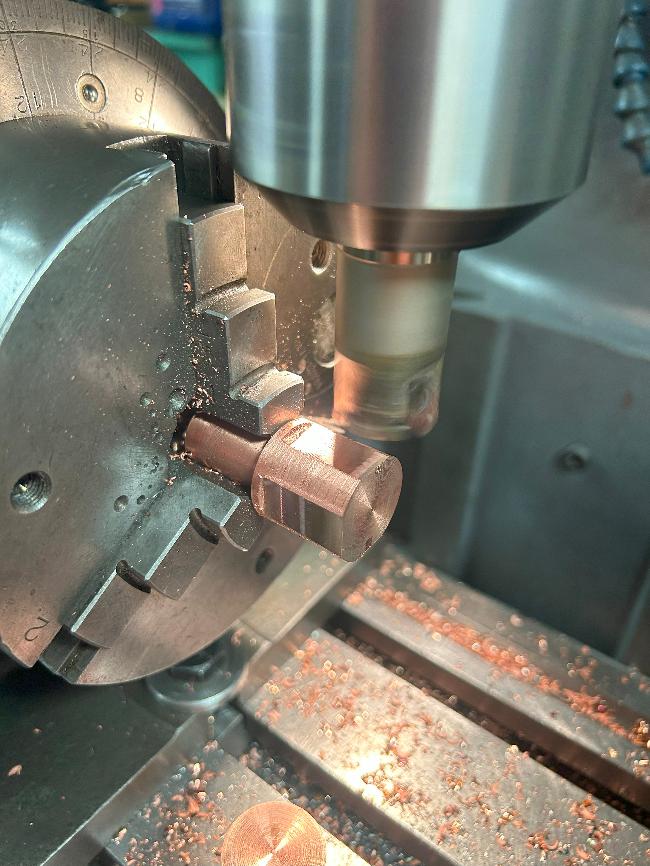

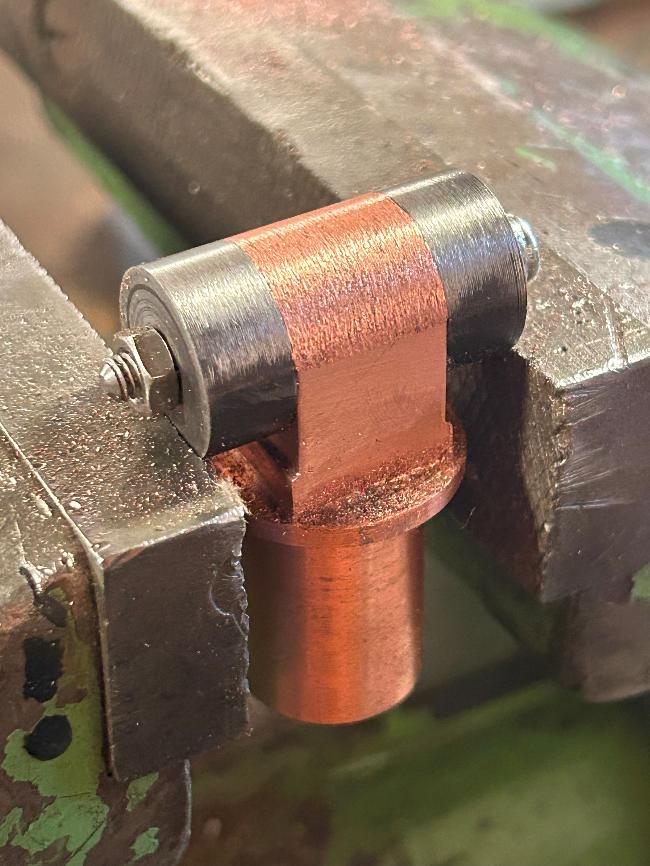

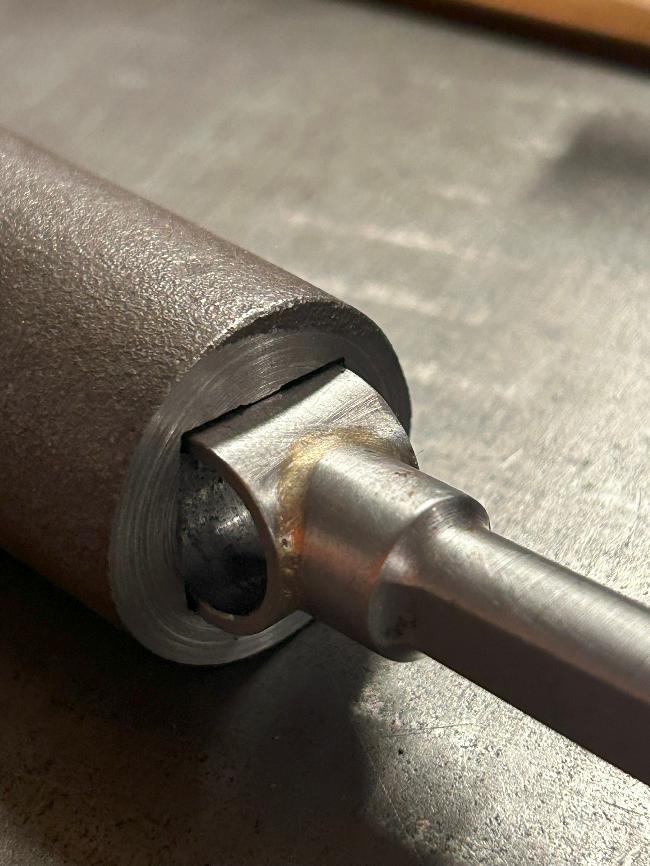

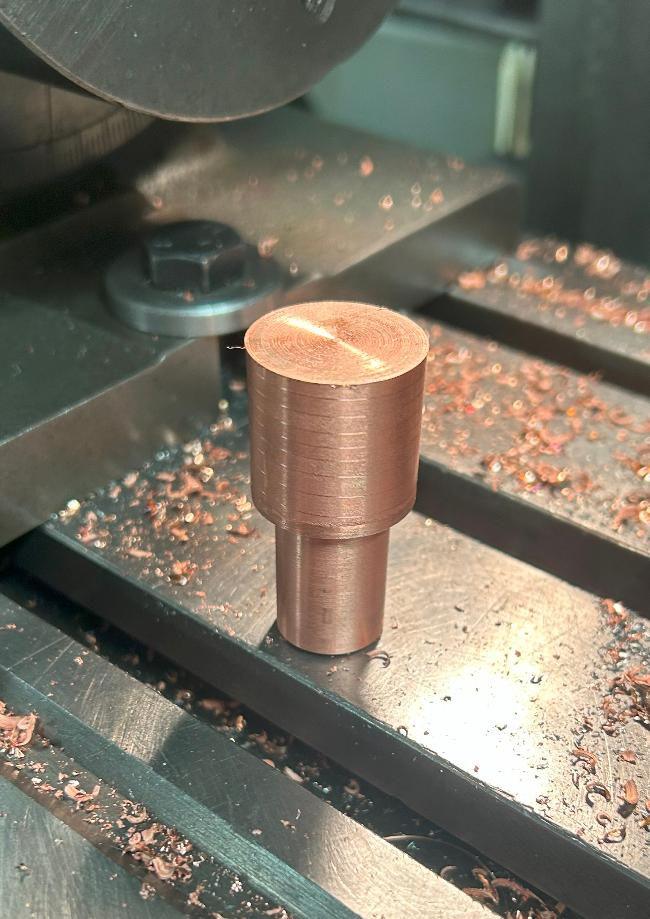

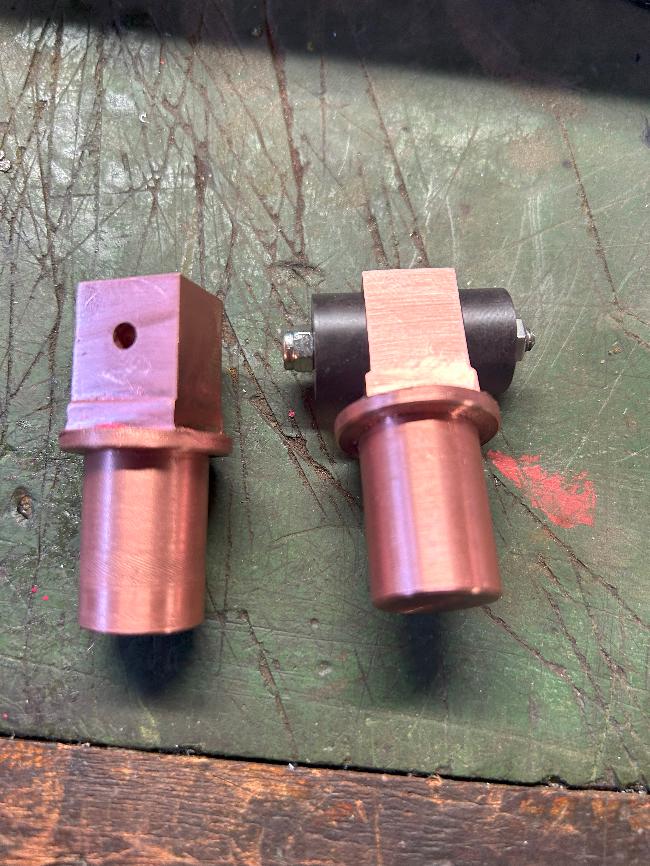

The connecting rod didn't fit the crosshead casting. Due to the shape this needed to be spark eroded. Two copper dies were manufactured (Roughing and Finishing) as per the company requested, I opted to use to spark erode the two castings.
