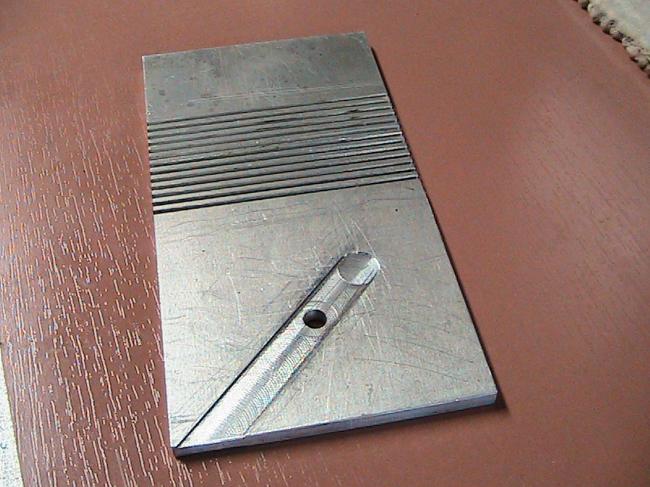

The jig is handed so the chevrons can be painted to hand the back plates. This was achived by machining both sides of the jig plate.

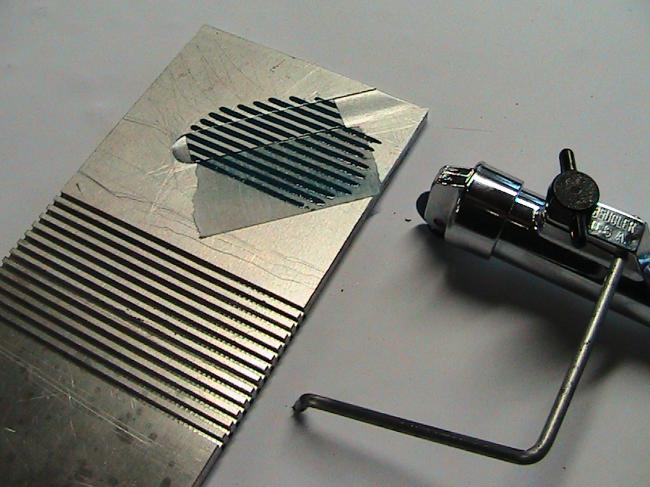

Beugler pinstriping tool used with home made guide
Painted back plate
Finished plates removed from jig and left to dry
